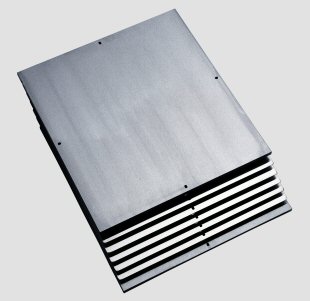

Lamination plates
C.A.PICARD® multilayer lamination plates are manufactured to the highest of standards and quality materials available.
Lamination tooling plates are available in standard 4 slot one offset pattern, round holes, or specified hole patterns.
All lamination plates are tooled to your specifications with hardened steel bushings.
All bushings are precision fit and ground flush to plate. All plates have an orientation chamfer, are treated with rust preventative, identified with serial number, date of manufacture, wrapped with protective coverings and packaged in wood crates.
Note: Optional materials available upon request.
| Lamination plates | |
|---|---|
| Steel quality: | AISI 4140 H |
| Hardness: | 38 - 40 HRC |
| Thermal expansion coefficient: | 10-6 / °C 20-100 °C = 11.1 20-200 °C = 12.1 20-300 °C = 12.9 |
| Heat conductivity: | 42 W/mK |
| Analysis: | C = 0.42 Cr = 1.05 Mn = 0.65 Mo = 0.20 |
| Dimensions and tolerances | |
| Length / Width: | ± 0.030" |
| Thickness: | ± 0.002" |
| Flatness: | 0.002" TIR/FT |
| Parallelism: - up to 14": - over 14": | 0.010" 0.015" |
| Surface finish: | Grit 80 Ra~1.2µm Rz~8.0µm Rmax~10.0µm |
| Available thickness: | .250", .275", .375" |
Separator plates
C.A.PICARD® multilayer separator plates are available in standard 4 slot one offset pattern, or per your specified requirements. Plates can be supplied with slots, holes, or combination of both.
| Lamination plates | |
|---|---|
| Steel quality: | 420 SS |
| Hardness: | 45 - 50 HRC |
| Thermal expansion coefficient: | 10-6 / °C |
| Heat conductivity: | 30 W/mK |
| Analysis: | C = 0.20 Cr = 13.0 |
| Dimensions and tolerances | |
| Length / Width: | ± 0.030" |
| Thickness: | ± 0.003" |
| Flatness: | depending on size |
| Parallelism: - up to 14": - over 14": | 0.010" 0.015" |
| Surface finish: | #4 Ra~0.25µm Rz~2.4µm Rmax~3.5µm |
| Available thickness: | .40", .052", .062" |
All plates have an orientation chamfer, wrapped with protective coverings and packaged in wood crates. Note: Optional materials available upon request.

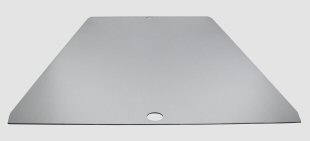

Carrier plates for auto load & unload press system
C.A.PICARD® multilayer carrier plates are manufactured to the highest standards and quality materials available. Lamination carrier plates are equipped with locators for ease of assembly, transportation and disassembly of your lamination books. Hole patterns and configurations per customer specified requirements or we can make recommendations to best fit your specific needs.
| Lamination plates | |
|---|---|
| Steel quality: | 6150 |
| Hardness: | 48 - 50 HRC |
| Thermal expansion coefficient: | 10-6 / °C 20-100°C = 11.1 20-200°C = 12.1 20-300°C = 12.9 |
| Heat conductivity: | 42 W/mK |
| Analysis: | C = 0.53 Cr = 1.02 Mn = 0.85 |
